Silicone Rubber Spraying Conductive Coating Ink
Product Description
High-temperature vulcanization technology is key to this product. This one-component ink is designed for silicone surfaces that require electrical conductivity, and it is suitable for silk screen, pad printing, and spot printing.
Application
Mainly applied to silicone products that requires electrical conductivity.
Processing
1.Ensure the silicone surface is clean, free from impurities, oil, particles, etc.
2. Do not use the ink straight from the refrigerator; allow it to reach room temperature first. If the ink is too viscous, add odorless kerosene to achieve a consistency suitable for screen, pad, or spot printing.
3. Let the ink stand for 10–30 minutes in a dust-free space. After the solvent has fully evaporated, curing takes effect.
4. Vulcanize by baking at 180–200℃ for 10–20 minutes.
5. Diluents include aviation kerosene. For spot printing, mix ink and thinner at a 1:2 ratio. For screen printing, use a 1:0.2 ratio.
6. Typical resistance is around 100 Ω.
All physical data are only for reference.
Attention
1. The product should be sealed and stored at 0-10°C, and the storage period is three
months. When the product has passed the storage period, it can be further used after
the technical test.
2. The product should be stirred evenly and completely.
3. Printing must be done in a suitable environment. It is recommended to keep the
working area free of dust, keep the temperature below 25 ° C and control the
humidity to 60-75%. Too low humidity will easily cause static electricity in the ink,
which in turn may result in a poor printed image.
4. Unused ink should be sealed and refrigerated.
Packing
1KG/Bottle.

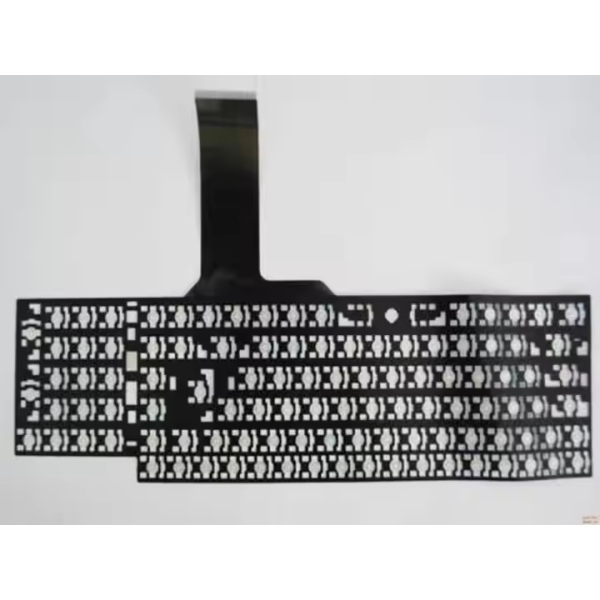

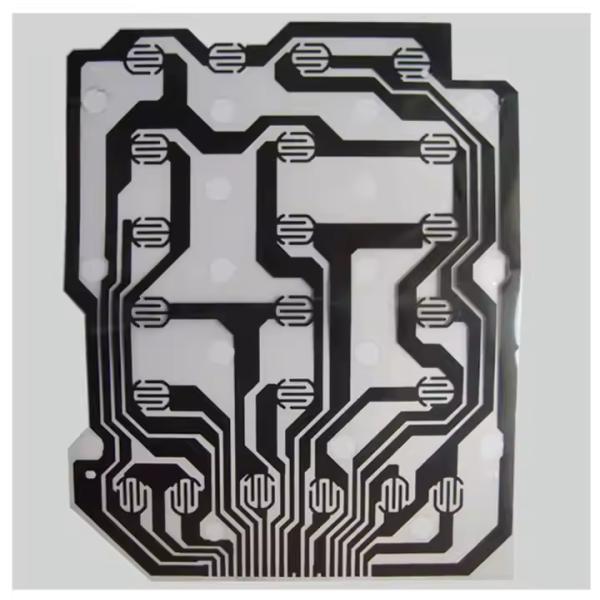

Application range:
